NAVITEQ RTK is a network service for geodetic measurements in real time.
It provides customers with corrections for achieving accuracy of up to 2 cm.
It provides customers with corrections for achieving accuracy of up to 2 cm.
Description
Usage
Applications
Advantages
NAVITEQ RTK is a subscription network service for geodetic measurements in real time.
It transmits data corrections received as a result of the continuous operation of the NAVITEQ network reference stations.
NAVITEQ RTK increases the accuracy of the phase measurements within the coverage of the GNSS network. It gives accuracy of up to 2 cm.
In order to use the service, the customer needs a GPS or GPS/GLONASS receiver that can receive correction data, and a communication device (GSM modem).
With the NAVITEQ network solution you receive corrections for the atmospheric conditions in the region where you take the real time measurement.
The only thing you need is a GNSS receiver and the high accuracy of the measurements is guaranteed.
It transmits data corrections received as a result of the continuous operation of the NAVITEQ network reference stations.
NAVITEQ RTK increases the accuracy of the phase measurements within the coverage of the GNSS network. It gives accuracy of up to 2 cm.
In order to use the service, the customer needs a GPS or GPS/GLONASS receiver that can receive correction data, and a communication device (GSM modem).
With the NAVITEQ network solution you receive corrections for the atmospheric conditions in the region where you take the real time measurement.
The only thing you need is a GNSS receiver and the high accuracy of the measurements is guaranteed.
Traditionally, in order to take field measurements in real time you need at least two receivers.
The first one is situated on a point with known coordinates. Тhe corrected position of the second one is determined according to the position of the first.
The corrections are transferred via radio connection.
When using NAVITEQ RTK, the customer receives the correction data from the NAVITEQ network.
He needs only one GNSS receiver.

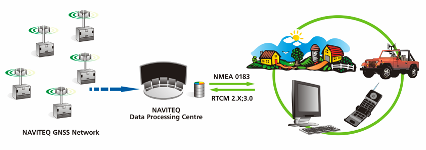

The basis of this service is dual data transfer between the customer’s GNSS/GPS receiver and the NAVITEQ system. The customer sends his approximate position in NMEA protocol by connecting to the NAVITEQ system through a GSM modem.
The system sets the exact customer’s position and sends back the correction data in format RTCM 2.3 / 3.1.
NAVITEQ provides data SIMs in a data pool on the Mtel mobile network.
The customer can use their own SIMs, from Mtel or another mobile operator.
The first one is situated on a point with known coordinates. Тhe corrected position of the second one is determined according to the position of the first.
The corrections are transferred via radio connection.
When using NAVITEQ RTK, the customer receives the correction data from the NAVITEQ network.
He needs only one GNSS receiver.
The basis of this service is dual data transfer between the customer’s GNSS/GPS receiver and the NAVITEQ system. The customer sends his approximate position in NMEA protocol by connecting to the NAVITEQ system through a GSM modem.
The system sets the exact customer’s position and sends back the correction data in format RTCM 2.3 / 3.1.
NAVITEQ provides data SIMs in a data pool on the Mtel mobile network.
The customer can use their own SIMs, from Mtel or another mobile operator.
NAVITEQ RTK finds application in:
- Surveying – street axis networks, control networks, topographical survey, surface grading design, tracing;
- Cadastre;
- Geographic Information Systems (GIS) – when high accuracy object positioning is required;
- Utility – position determination of networks and constructions;
- Photogrammetry – to determine the coordinates of ground control points;
- Precise agriculture;
- Mining
Centimeter accuracy of the measurements
In real time, at any time in the coverage of the NAVITEQ network.
Economic efficiency
The correction data, transferred by the NAVITEQ network, saves the necessity of a second, expensive GNSS receiver.
Productivity benefits
Save time – faster initialization of the mobile receiver
Convenience – you measure long distances (up to 50 km) with high accuracy
Guaranteed service quality
Permanent control and technical support 24/7
Training and consultation
NAVITEQ experts make tests for compatibility between the real time service and the GNSS receiver with all suppliers of professional equipment in Bulgaria.
Every client of the NAVITEQ RTK receives specialized technical consultation. In addition our team performs field training for working with NAVITEQ RTK service.
Flexible consumption opportunities and payment conditions
NAVITEQ provides different payment schemes – usage-based or flat rate packages
In real time, at any time in the coverage of the NAVITEQ network.
Economic efficiency
The correction data, transferred by the NAVITEQ network, saves the necessity of a second, expensive GNSS receiver.
Productivity benefits
Save time – faster initialization of the mobile receiver
Convenience – you measure long distances (up to 50 km) with high accuracy
Guaranteed service quality
Permanent control and technical support 24/7
Training and consultation
NAVITEQ experts make tests for compatibility between the real time service and the GNSS receiver with all suppliers of professional equipment in Bulgaria.
Every client of the NAVITEQ RTK receives specialized technical consultation. In addition our team performs field training for working with NAVITEQ RTK service.
Flexible consumption opportunities and payment conditions
NAVITEQ provides different payment schemes – usage-based or flat rate packages
